mln::image3d< T > Struct Template Reference [Basic types]

Basic 3D image class. More...

#include <image3d.hh>

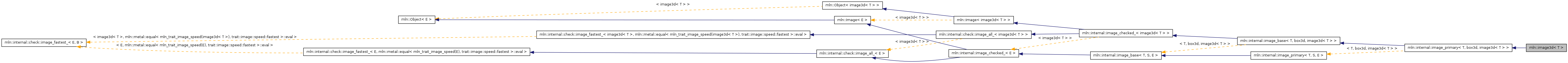

Inheritance diagram for mln::image3d< T >:

List of all members.

Public Types
typedef box3d::bkd_piter	bkd_piter
	Backward Site_Iterator associated type.
typedef Image< void >	category
typedef box3d	domain_t
	Site_Set associated type.
typedef dpoint3d	dpoint
typedef image3d< T >	exact_t
typedef box3d::fwd_piter	fwd_piter
	Forward Site_Iterator associated type.
typedef T &	lvalue
	Return type of read-write access.
typedef fwd_piter	piter
	Site_Iterator associated type; default definition is fwd_piter.
typedef point3d	point
typedef box3d	pset
typedef point3d	psite
	Point_Site associated type.
typedef const T &	rvalue
	Return type of read-only access.
typedef box3d::site	site
	Site associated type.
typedef image3d< tag::value_< T > >	skeleton
	Skeleton.
typedef internal::image_primary< T, box3d, image3d< T > >	super_
	Super type.
typedef mln::value::set< T >	t_eligible_values_set
	Eligible-value-set associated type.
typedef mln::value::set < typename mln::value::super_value< T > ::ret >	t_values_space
	Value space associated type.
typedef T	value
	Value associated type.
Public Member Functions
const T &	at_ (def::coord sli, def::coord row, def::coord col) const
	Read-only access to the image value located at (sli, row, col).
T &	at_ (def::coord sli, def::coord row, def::coord col)
	Read-write access to the image value located at (sli, row, col).
const box3d &	bbox () const
	Give the bounding box domain.
unsigned	border () const
	Give the border thickness.
const T *	buffer () const
	Give a hook to the value buffer.
T *	buffer ()
	Give a hook to the value buffer.
int	delta_index (const dpoint3d &dp) const
	Fast Image method.
void	destroy ()
	Detach data from an image (free it if nobody else hold it).
const box3d &	domain () const
	Give the definition domain.
const T &	element (unsigned i) const
	Read-only access to the image value located at index i.
T &	element (unsigned i)
	Read-write access to the image value located at index i.
bool	has (const point3d &p) const
	Test if p is valid.
const util::tracked_ptr < internal::data< image3d< T > > > &	hook_data_ () const
	Hook to the image data.
const void *	id_ () const
	Give an identifier of this image.
	image3d ()
	Constructor without argument.
	image3d (const box3d &b, unsigned bdr=border::thickness)
	Constructor with a box and the border thickness (default is 3).
	image3d (int nslis, int nrows, int ncols, unsigned bdr=border::thickness)
	Constructor with the numbers of indexes and the border thickness.
unsigned	index_of_point (const P &p) const
	Give the offset of the site p.
void	init_ (const box3d &b, unsigned bdr=border::thickness)
	Initialize an empty image.
bool	is_valid () const
	Test if this image has been initialized; default impl.
unsigned	ncols () const
	Give the number of columns.
unsigned	nelements () const
	Give the number of cells (points including border ones).
unsigned	nrows () const
	Give the number of rows.
std::size_t	nsites () const
	Give the number of sites of the image domain.
unsigned	nslices () const
	Give the number of slices.
T &	operator() (const point3d &p)
	Read-write access to the image value located at point p.
const T &	operator() (const point3d &p) const
	Read-only access to the image value located at point p.
point3d	point_at_index (unsigned o) const
	Give the point corresponding to the offset o.
void	resize_ (unsigned new_border)
	Resize image border with new_border.
const t_eligible_values_set &	values_eligible () const
const t_values_space &	values_space () const
	Return the value space of the image.
Protected Attributes
util::tracked_ptr < internal::data< image3d< T > > >	data_

---

Detailed Description

template<typename T>
struct mln::image3d< T >

Basic 3D image class.

The parameter T is the type of pixel values. This image class stores data in memory and has a virtual border with constant thickness around data.

---

Member Typedef Documentation

template<typename T>

typedef box3d ::bkd_piter mln::image3d< T >::bkd_piter

Backward Site_Iterator associated type.

Reimplemented from mln::internal::image_base< T, box3d, image3d< T > >.

typedef Image<void> mln::Image< image3d< T > >::category [inherited]

Reimplemented from mln::Object< image3d< T > >.

typedef box3d mln::internal::image_base< T, box3d , image3d< T > >::domain_t [inherited]

Site_Set associated type.

template<typename T>

typedef dpoint3d mln::image3d< T >::dpoint

typedef image3d< T > mln::Object< image3d< T > >::exact_t [inherited]

template<typename T>

typedef box3d ::fwd_piter mln::image3d< T >::fwd_piter

Forward Site_Iterator associated type.

Reimplemented from mln::internal::image_base< T, box3d, image3d< T > >.

template<typename T>

typedef T& mln::image3d< T >::lvalue

Return type of read-write access.

typedef fwd_piter mln::internal::image_base< T, box3d , image3d< T > >::piter [inherited]

Site_Iterator associated type; default definition is fwd_piter.

template<typename T>

typedef point3d mln::image3d< T >::point

template<typename T>

typedef box3d mln::image3d< T >::pset

template<typename T>

typedef point3d mln::image3d< T >::psite

Point_Site associated type.

Reimplemented from mln::internal::image_base< T, box3d, image3d< T > >.

template<typename T>

typedef const T& mln::image3d< T >::rvalue

Return type of read-only access.

typedef box3d ::site mln::internal::image_base< T, box3d , image3d< T > >::site [inherited]

Site associated type.

template<typename T>

typedef image3d< tag::value_<T> > mln::image3d< T >::skeleton

Skeleton.

template<typename T>

typedef internal::image_primary< T, box3d, image3d<T> > mln::image3d< T >::super_

Super type.

typedef mln::value::set<T> mln::internal::image_base< T, box3d , image3d< T > >::t_eligible_values_set [inherited]

Eligible-value-set associated type.

typedef mln::value::set< typename mln::value::super_value<T>::ret > mln::internal::image_base< T, box3d , image3d< T > >::t_values_space [inherited]

Value space associated type.

template<typename T>

typedef T mln::image3d< T >::value

Value associated type.

Reimplemented from mln::internal::image_base< T, box3d, image3d< T > >.

---

Constructor & Destructor Documentation

template<typename T >

mln::image3d< T >::image3d

(

)

[inline]

Constructor without argument.

template<typename T >

mln::image3d< T >::image3d	(	const box3d &	b,
		unsigned	bdr = border::thickness
	)			[inline]

Constructor with a box and the border thickness (default is 3).

References mln::image3d< T >::init_().

template<typename T >

mln::image3d< T >::image3d	(	int	nslis,
		int	nrows,
		int	ncols,
		unsigned	bdr = border::thickness
	)			[inline]

Constructor with the numbers of indexes and the border thickness.

References mln::make::box3d(), and mln::image3d< T >::init_().

---

Member Function Documentation

template<typename T >

const T & mln::image3d< T >::at_	(	def::coord	sli,
		def::coord	row,
		def::coord	col
	)			const [inline]

Read-only access to the image value located at (sli, row, col).

References mln::image3d< T >::has().

template<typename T >

T & mln::image3d< T >::at_	(	def::coord	sli,
		def::coord	row,
		def::coord	col
	)			[inline]

Read-write access to the image value located at (sli, row, col).

References mln::image3d< T >::has().

template<typename T >

const box3d & mln::image3d< T >::bbox

(

)

const [inline]

Give the bounding box domain.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

template<typename T >

unsigned mln::image3d< T >::border

(

)

const [inline]

Give the border thickness.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

Referenced by mln::init_().

template<typename T >

const T * mln::image3d< T >::buffer

(

)

const [inline]

Give a hook to the value buffer.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

template<typename T >

T * mln::image3d< T >::buffer

(

)

[inline]

Give a hook to the value buffer.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

template<typename T >

int mln::image3d< T >::delta_index

(

const dpoint3d &

dp

)

const [inline]

Fast Image method.

Give the offset corresponding to the delta-point dp.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

void mln::internal::image_base< T, box3d , image3d< T > >::destroy

(

)

[inherited]

Detach data from an image (free it if nobody else hold it).

template<typename T >

const box3d & mln::image3d< T >::domain

(

)

const [inline]

Give the definition domain.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

template<typename T >

const T & mln::image3d< T >::element

(

unsigned

i

)

const [inline]

Read-only access to the image value located at index i.

References mln::image3d< T >::nelements().

template<typename T >

T & mln::image3d< T >::element

(

unsigned

i

)

[inline]

Read-write access to the image value located at index i.

References mln::image3d< T >::nelements().

template<typename T >

bool mln::image3d< T >::has

(

const point3d &

p

)

const [inline]

Test if p is valid.

Reimplemented from mln::internal::image_base< T, box3d, image3d< T > >.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

Referenced by mln::image3d< T >::at_(), and mln::image3d< T >::operator()().

const util::tracked_ptr< internal::data<image3d< T > > >& mln::internal::image_base< T, box3d , image3d< T > >::hook_data_

(

)

const [inherited]

Hook to the image data.

const void* mln::internal::image_base< T, box3d , image3d< T > >::id_

(

)

const [inherited]

Give an identifier of this image.

When several image variables designate the same image, they share the same identifier.

unsigned mln::internal::check::image_fastest_< image3d< T > , mln::metal::equal< mln_trait_image_speed(image3d< T >), trait::image::speed::fastest >::eval >::index_of_point

(

const P &

p

)

const [inherited]

Give the offset of the site p.

Parameters:

[in]

p

A site.

Warning:

This method is final.

Precondition:

The image has to be initialized and to own the point p.

Postcondition:

p == point_at_index(result)

template<typename T >

void mln::image3d< T >::init_	(	const box3d &	b,
		unsigned	bdr = border::thickness
	)			[inline]

Initialize an empty image.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

Referenced by mln::image3d< T >::image3d(), and mln::init_().

bool mln::internal::image_base< T, box3d , image3d< T > >::is_valid

(

)

const [inherited]

Test if this image has been initialized; default impl.

Referenced by mln::image3d< T >::bbox(), mln::image3d< T >::border(), mln::image3d< T >::buffer(), mln::image3d< T >::delta_index(), mln::image3d< T >::domain(), mln::image3d< T >::has(), mln::image3d< T >::init_(), mln::image3d< T >::ncols(), mln::image3d< T >::nelements(), mln::image3d< T >::nrows(), and mln::image3d< T >::nslices().

template<typename T >

unsigned mln::image3d< T >::ncols

(

)

const [inline]

Give the number of columns.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

template<typename T >

unsigned mln::image3d< T >::nelements

(

)

const [inline]

Give the number of cells (points including border ones).

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

Referenced by mln::image3d< T >::element(), and mln::image3d< T >::point_at_index().

template<typename T >

unsigned mln::image3d< T >::nrows

(

)

const [inline]

Give the number of rows.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

std::size_t mln::internal::image_base< T, box3d , image3d< T > >::nsites

(

)

const [inherited]

Give the number of sites of the image domain.

template<typename T >

unsigned mln::image3d< T >::nslices

(

)

const [inline]

Give the number of slices.

References mln::internal::image_base< T, box3d, image3d< T > >::is_valid().

template<typename T >

T & mln::image3d< T >::operator()

(

const point3d &

p

)

[inline]

Read-write access to the image value located at point p.

References mln::image3d< T >::has().

template<typename T >

const T & mln::image3d< T >::operator()

(

const point3d &

p

)

const [inline]

Read-only access to the image value located at point p.

References mln::image3d< T >::has().

template<typename T >

point3d mln::image3d< T >::point_at_index

(

unsigned

o

)

const [inline]

Give the point corresponding to the offset o.

References mln::image3d< T >::nelements().

template<typename T >

void mln::image3d< T >::resize_

(

unsigned

new_border

)

[inline]

Resize image border with new_border.

const t_eligible_values_set& mln::internal::image_base< T, box3d , image3d< T > >::values_eligible

(

)

const [inherited]

const t_values_space& mln::internal::image_base< T, box3d , image3d< T > >::values_space

(

)

const [inherited]

Return the value space of the image.

---

Member Data Documentation

util::tracked_ptr< internal::data<image3d< T > > > mln::internal::image_base< T, box3d , image3d< T > >::data_ [protected, inherited]
