mln::image1d< T > Struct Template Reference [Basic types]

Basic 1D image class. More...

#include <image1d.hh>

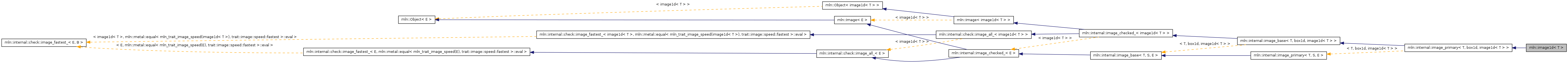

Inheritance diagram for mln::image1d< T >:

List of all members.

Public Types
typedef box1d::bkd_piter	bkd_piter
	Backward Site_Iterator associated type.
typedef Image< void >	category
typedef box1d	domain_t
	Site_Set associated type.
typedef image1d< T >	exact_t
typedef box1d::fwd_piter	fwd_piter
	Forward Site_Iterator associated type.
typedef T &	lvalue
	Return type of read-write access.
typedef fwd_piter	piter
	Site_Iterator associated type; default definition is fwd_piter.
typedef box1d::psite	psite
	Point_Site associated type.
typedef const T &	rvalue
	Return type of read-only access.
typedef box1d::site	site
	Site associated type.
typedef image1d< tag::value_< T > >	skeleton
	Skeleton.
typedef internal::image_primary< T, mln::box1d, image1d< T > >	super_
typedef mln::value::set< T >	t_eligible_values_set
	Eligible-value-set associated type.
typedef mln::value::set < typename mln::value::super_value< T > ::ret >	t_values_space
	Value space associated type.
typedef T	value
	Value associated type.
Public Member Functions
const T &	at_ (def::coord index) const
	Read-only access to the image value located at (index).
T &	at_ (def::coord index)
	Read-write access to the image value located at (index).
const box1d &	bbox () const
	Give the bounding box domain.
unsigned	border () const
	Give the border thickness.
const T *	buffer () const
	Give a hook to the value buffer.
T *	buffer ()
	Give a hook to the value buffer.
int	delta_index (const dpoint1d &dp) const
	Give the offset corresponding to the delta-point dp.
void	destroy ()
	Detach data from an image (free it if nobody else hold it).
const box1d &	domain () const
	Give the definition domain.
const T &	element (unsigned i) const
	Read-only access to the i-th image value (including the border).
T &	element (unsigned i)
	Read-write access to the i-th image value (including the border).
bool	has (const point1d &p) const
	Test if p is valid.
const util::tracked_ptr < internal::data< image1d< T > > > &	hook_data_ () const
	Hook to the image data.
const void *	id_ () const
	Give an identifier of this image.
	image1d ()
	Constructor without argument.
	image1d (unsigned ninds, unsigned bdr=border::thickness)
	Constructor with the number of indices and the border thickness.
	image1d (const box1d &b, unsigned bdr=border::thickness)
	Constructor with a box and the border thickness.
unsigned	index_of_point (const P &p) const
	Give the offset of the site p.
void	init_ (const box1d &b, unsigned bdr=border::thickness)
	Initialize an empty image.
bool	is_valid () const
	Test if this image has been initialized; default impl.
unsigned	nelements () const
	Give the number of cells (points including border ones).
unsigned	ninds () const
	Give the number of indexes.
std::size_t	nsites () const
	Give the number of sites of the image domain.
T &	operator() (const point1d &p)
	Read-write access to the image value located at point p.
const T &	operator() (const point1d &p) const
	Read-only access to the image value located at point p.
point1d	point_at_index (unsigned i) const
	Give the point corresponding to the offset o.
void	resize_ (unsigned new_border)
	Resize image border with new_border.
const t_eligible_values_set &	values_eligible () const
const t_values_space &	values_space () const
	Return the value space of the image.
Protected Attributes
util::tracked_ptr < internal::data< image1d< T > > >	data_

---

Detailed Description

template<typename T>
struct mln::image1d< T >

Basic 1D image class.

The parameter T is the type of pixel values. This image class stores data in memory and has a virtual border with constant thickness before and after data.

---

Member Typedef Documentation

typedef box1d ::bkd_piter mln::internal::image_base< T, box1d , image1d< T > >::bkd_piter [inherited]

Backward Site_Iterator associated type.

typedef Image<void> mln::Image< image1d< T > >::category [inherited]

Reimplemented from mln::Object< image1d< T > >.

typedef box1d mln::internal::image_base< T, box1d , image1d< T > >::domain_t [inherited]

Site_Set associated type.

typedef image1d< T > mln::Object< image1d< T > >::exact_t [inherited]

typedef box1d ::fwd_piter mln::internal::image_base< T, box1d , image1d< T > >::fwd_piter [inherited]

Forward Site_Iterator associated type.

template<typename T>

typedef T& mln::image1d< T >::lvalue

Return type of read-write access.

typedef fwd_piter mln::internal::image_base< T, box1d , image1d< T > >::piter [inherited]

Site_Iterator associated type; default definition is fwd_piter.

typedef box1d ::psite mln::internal::image_base< T, box1d , image1d< T > >::psite [inherited]

Point_Site associated type.

template<typename T>

typedef const T& mln::image1d< T >::rvalue

Return type of read-only access.

typedef box1d ::site mln::internal::image_base< T, box1d , image1d< T > >::site [inherited]

Site associated type.

template<typename T>

typedef image1d< tag::value_<T> > mln::image1d< T >::skeleton

Skeleton.

template<typename T>

typedef internal::image_primary< T, mln::box1d, image1d<T> > mln::image1d< T >::super_

typedef mln::value::set<T> mln::internal::image_base< T, box1d , image1d< T > >::t_eligible_values_set [inherited]

Eligible-value-set associated type.

typedef mln::value::set< typename mln::value::super_value<T>::ret > mln::internal::image_base< T, box1d , image1d< T > >::t_values_space [inherited]

Value space associated type.

template<typename T>

typedef T mln::image1d< T >::value

Value associated type.

Reimplemented from mln::internal::image_base< T, box1d, image1d< T > >.

---

Constructor & Destructor Documentation

template<typename T >

mln::image1d< T >::image1d

(

)

[inline]

Constructor without argument.

template<typename T >

mln::image1d< T >::image1d	(	unsigned	ninds,
		unsigned	bdr = border::thickness
	)			[inline]

Constructor with the number of indices and the border thickness.

References mln::make::box1d(), and mln::image1d< T >::init_().

template<typename T >

mln::image1d< T >::image1d	(	const box1d &	b,
		unsigned	bdr = border::thickness
	)			[inline]

Constructor with a box and the border thickness.

References mln::image1d< T >::init_().

---

Member Function Documentation

template<typename T >

const T & mln::image1d< T >::at_

(

def::coord

index

)

const [inline]

Read-only access to the image value located at (index).

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::has().

Referenced by mln::world::binary_2d::projected_histo(), and mln::io::plot::save().

template<typename T >

T & mln::image1d< T >::at_

(

def::coord

index

)

[inline]

Read-write access to the image value located at (index).

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::has().

template<typename T >

const box1d & mln::image1d< T >::bbox

(

)

const [inline]

Give the bounding box domain.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

template<typename T >

unsigned mln::image1d< T >::border

(

)

const [inline]

Give the border thickness.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

Referenced by mln::init_().

template<typename T >

const T * mln::image1d< T >::buffer

(

)

const [inline]

Give a hook to the value buffer.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

template<typename T >

T * mln::image1d< T >::buffer

(

)

[inline]

Give a hook to the value buffer.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

template<typename T >

int mln::image1d< T >::delta_index

(

const dpoint1d &

dp

)

const [inline]

Give the offset corresponding to the delta-point dp.

References mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

void mln::internal::image_base< T, box1d , image1d< T > >::destroy

(

)

[inherited]

Detach data from an image (free it if nobody else hold it).

template<typename T >

const box1d & mln::image1d< T >::domain

(

)

const [inline]

Give the definition domain.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

template<typename T >

T & mln::image1d< T >::element

(

unsigned

i

)

[inline]

Read-write access to the i-th image value (including the border).

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::nelements().

template<typename T >

const T & mln::image1d< T >::element

(

unsigned

i

)

const [inline]

Read-only access to the i-th image value (including the border).

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::nelements().

template<typename T >

bool mln::image1d< T >::has

(

const point1d &

p

)

const [inline]

Test if p is valid.

Reimplemented from mln::internal::image_base< T, box1d, image1d< T > >.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

Referenced by mln::image1d< T >::at_(), and mln::image1d< T >::operator()().

const util::tracked_ptr< internal::data<image1d< T > > >& mln::internal::image_base< T, box1d , image1d< T > >::hook_data_

(

)

const [inherited]

Hook to the image data.

const void* mln::internal::image_base< T, box1d , image1d< T > >::id_

(

)

const [inherited]

Give an identifier of this image.

When several image variables designate the same image, they share the same identifier.

unsigned mln::internal::check::image_fastest_< image1d< T > , mln::metal::equal< mln_trait_image_speed(image1d< T >), trait::image::speed::fastest >::eval >::index_of_point

(

const P &

p

)

const [inherited]

Give the offset of the site p.

Parameters:

[in]

p

A site.

Warning:

This method is final.

Precondition:

The image has to be initialized and to own the point p.

Postcondition:

p == point_at_index(result)

template<typename T >

void mln::image1d< T >::init_	(	const box1d &	b,
		unsigned	bdr = border::thickness
	)			[inline]

Initialize an empty image.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

Referenced by mln::convert::over_load::from_to_(), mln::image1d< T >::image1d(), and mln::init_().

bool mln::internal::image_base< T, box1d , image1d< T > >::is_valid

(

)

const [inherited]

Test if this image has been initialized; default impl.

Referenced by mln::image1d< T >::bbox(), mln::image1d< T >::border(), mln::image1d< T >::buffer(), mln::image1d< T >::delta_index(), mln::image1d< T >::domain(), mln::image1d< T >::has(), mln::image1d< T >::init_(), mln::image1d< T >::nelements(), and mln::image1d< T >::ninds().

template<typename T >

unsigned mln::image1d< T >::nelements

(

)

const [inline]

Give the number of cells (points including border ones).

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

Referenced by mln::image1d< T >::element(), and mln::image1d< T >::point_at_index().

template<typename T >

unsigned mln::image1d< T >::ninds

(

)

const [inline]

Give the number of indexes.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::internal::image_base< T, box1d, image1d< T > >::is_valid().

Referenced by mln::world::binary_2d::projected_histo(), and mln::io::plot::save().

std::size_t mln::internal::image_base< T, box1d , image1d< T > >::nsites

(

)

const [inherited]

Give the number of sites of the image domain.

template<typename T >

const T & mln::image1d< T >::operator()

(

const point1d &

p

)

const [inline]

Read-only access to the image value located at point p.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::has().

template<typename T >

T & mln::image1d< T >::operator()

(

const point1d &

p

)

[inline]

Read-write access to the image value located at point p.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::has().

template<typename T >

point1d mln::image1d< T >::point_at_index

(

unsigned

i

)

const [inline]

Give the point corresponding to the offset o.

References mln::internal::image_base< T, box1d, image1d< T > >::data_, and mln::image1d< T >::nelements().

template<typename T >

void mln::image1d< T >::resize_

(

unsigned

new_border

)

[inline]

Resize image border with new_border.

References mln::internal::image_base< T, box1d, image1d< T > >::data_.

const t_eligible_values_set& mln::internal::image_base< T, box1d , image1d< T > >::values_eligible

(

)

const [inherited]

const t_values_space& mln::internal::image_base< T, box1d , image1d< T > >::values_space

(

)

const [inherited]

Return the value space of the image.

---

Member Data Documentation

util::tracked_ptr< internal::data<image1d< T > > > mln::internal::image_base< T, box1d , image1d< T > >::data_ [protected, inherited]

Referenced by mln::image1d< T >::at_(), mln::image1d< T >::bbox(), mln::image1d< T >::border(), mln::image1d< T >::buffer(), mln::image1d< T >::domain(), mln::image1d< T >::element(), mln::image1d< T >::has(), mln::image1d< T >::init_(), mln::image1d< T >::nelements(), mln::image1d< T >::ninds(), mln::image1d< T >::operator()(), mln::image1d< T >::point_at_index(), and mln::image1d< T >::resize_().
