mln::win::cuboid3d Struct Reference [3D windows]

Cuboid defined on the 3-D square grid. More...

#include <cuboid3d.hh>

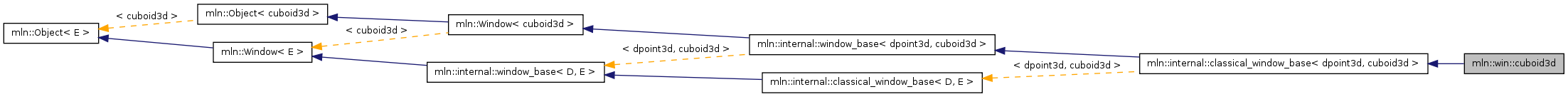

Inheritance diagram for mln::win::cuboid3d:

List of all members.

Public Types
typedef dpsites_fwd_piter < cuboid3d >	bkd_qiter
	Backward site iterator associated type.
typedef Window< void >	category
typedef dpoint3d	dpsite
	DPsite associated type.
typedef cuboid3d	exact_t
typedef dpsites_fwd_piter < cuboid3d >	fwd_qiter
	Forward site iterator associated type.
typedef dpoint3d::psite	psite
	Psite associated type.
typedef fwd_qiter	qiter
	Site iterator associated type.
typedef window< dpoint3d >	regular
	Regular window associated type.
typedef dpoint3d::site	site
	Site associated type.
Public Member Functions
	cuboid3d (unsigned depth, unsigned height, unsigned width)
	Constructor.
unsigned	delta () const
	Give the maximum coordinate gap between the window center and a window point.
unsigned	delta_ () const
	Give the maximum coordinate gap between the center of the window and a point of the window.
const dpoint3d &	dp (unsigned i) const
	Give the i-th delta-point.
bool	has (const dpoint3d &dp) const
	Test if the delta-point dp belongs to the window.
bool	is_centered () const
	Test if the window is centered; return true.
bool	is_empty () const
	Test if the window is empty (null size; no delta-point).
bool	is_neighbable_ () const
	Test if this window can be a neighborhood.
bool	is_symmetric () const
	Test if the window is symmetric; return true.
bool	is_valid () const
	return true by default.
void	print (std::ostream &ostr) const
	Print into ostr the window definition.
void	print_ (std::ostream &ostr) const
unsigned	size () const
	Give the number of delta-points.
const std::vector< dpoint3d > &	std_vector () const
	Give the vector of delta-points.
void	sym ()
	Apply a central symmetry to the target window; a no-op here.
const std::vector< dpoint3d > &	vect () const
	Give the vector of delta-points.
unsigned	volume () const
	Return the volume of the cuboid.
unsigned	depth () const
	Accessors.
unsigned	height () const
	Return the height of the cuboid.
unsigned	width () const
	Return the width of the cuboid.
Protected Member Functions
void	insert (const dpoint3d &d)
Protected Attributes
unsigned	depth_
	The depth of the cuboid (expressed as a number of slices).
unsigned	height_
	The height of the cuboid (expressed as a number of rows).
unsigned	width_
	The width of the cuboid (expressed as a number of columns).
mln::window< dpoint3d >	win_

---

Detailed Description

Cuboid defined on the 3-D square grid.

A cuboid3d is a 3-D window with cuboid (also known as rectangular prism or rectangular parallelepiped) shape. It is centered and symmetric.

For instance:

            o o o o o o o
           o o o o o o o
          o o o o o o o
         o o o o o o o
        o o o o o o o

            o o o o o o o
           o o o o o o o
          o o o x o o o
         o o o o o o o
        o o o o o o o

            o o o o o o o
           o o o o o o o
          o o o o o o o
         o o o o o o o
        o o o o o o o


is defined with depth = 3, height = 5 and width = 7.

Reference: http://en.wikipedia.org/wiki/Cuboid

---

Member Typedef Documentation

typedef dpsites_fwd_piter<cuboid3d > mln::internal::classical_window_base< dpoint3d , cuboid3d >::bkd_qiter [inherited]

Backward site iterator associated type.

typedef Window<void> mln::Window< cuboid3d >::category [inherited]

Reimplemented from mln::Object< cuboid3d >.

typedef dpoint3d mln::internal::window_base< dpoint3d , cuboid3d >::dpsite [inherited]

DPsite associated type.

typedef cuboid3d mln::Object< cuboid3d >::exact_t [inherited]

typedef dpsites_fwd_piter<cuboid3d > mln::internal::classical_window_base< dpoint3d , cuboid3d >::fwd_qiter [inherited]

Forward site iterator associated type.

typedef dpoint3d ::psite mln::internal::window_base< dpoint3d , cuboid3d >::psite [inherited]

Psite associated type.

typedef fwd_qiter mln::internal::classical_window_base< dpoint3d , cuboid3d >::qiter [inherited]

Site iterator associated type.

typedef window<dpoint3d > mln::internal::classical_window_base< dpoint3d , cuboid3d >::regular [inherited]

Regular window associated type.

typedef dpoint3d ::site mln::internal::window_base< dpoint3d , cuboid3d >::site [inherited]

Site associated type.

---

Constructor & Destructor Documentation

mln::win::cuboid3d::cuboid3d	(	unsigned	depth,
		unsigned	height,
		unsigned	width
	)			[inline]

Constructor.

Parameters:

[in]	depth	The depth of the cuboid3d.
[in]	height	The height of the cuboid3d.
[in]	width	The width of the cuboid3d.

Precondition:

Argument depth, height and width must be odd.

References mln::internal::classical_window_base< dpoint3d, cuboid3d >::insert().

---

Member Function Documentation

unsigned mln::internal::classical_window_base< dpoint3d , cuboid3d >::delta

(

)

const [inherited]

Give the maximum coordinate gap between the window center and a window point.

unsigned mln::win::cuboid3d::delta_

(

)

const [inline]

Give the maximum coordinate gap between the center of the window and a point of the window.

Reimplemented from mln::internal::classical_window_base< dpoint3d, cuboid3d >.

References depth_, height_, and width_.

unsigned mln::win::cuboid3d::depth

(

)

const [inline]

Accessors.

Return the depth of the cuboid.

References depth_.

const dpoint3d & mln::internal::classical_window_base< dpoint3d , cuboid3d >::dp

(

unsigned

i

)

const [inherited]

Give the i-th delta-point.

bool mln::internal::classical_window_base< dpoint3d , cuboid3d >::has

(

const dpoint3d &

dp

)

const [inherited]

Test if the delta-point dp belongs to the window.

unsigned mln::win::cuboid3d::height

(

)

const [inline]

Return the height of the cuboid.

References height_.

void mln::internal::classical_window_base< dpoint3d , cuboid3d >::insert

(

const dpoint3d &

d

)

[protected, inherited]

Referenced by cuboid3d().

bool mln::internal::classical_window_base< dpoint3d , cuboid3d >::is_centered

(

)

const [inherited]

Test if the window is centered; return true.

bool mln::internal::classical_window_base< dpoint3d , cuboid3d >::is_empty

(

)

const [inherited]

Test if the window is empty (null size; no delta-point).

bool mln::internal::window_base< dpoint3d , cuboid3d >::is_neighbable_

(

)

const [inherited]

Test if this window can be a neighborhood.

bool mln::internal::classical_window_base< dpoint3d , cuboid3d >::is_symmetric

(

)

const [inherited]

Test if the window is symmetric; return true.

bool mln::internal::window_base< dpoint3d , cuboid3d >::is_valid

(

)

const [inherited]

return true by default.

void mln::internal::classical_window_base< dpoint3d , cuboid3d >::print

(

std::ostream &

ostr

)

const [inherited]

Print into ostr the window definition.

void mln::win::cuboid3d::print_

(

std::ostream &

ostr

)

const [inline]

Reimplemented from mln::internal::classical_window_base< dpoint3d, cuboid3d >.

References depth_, height_, and width_.

unsigned mln::internal::classical_window_base< dpoint3d , cuboid3d >::size

(

)

const [inherited]

Give the number of delta-points.

const std::vector<dpoint3d >& mln::internal::classical_window_base< dpoint3d , cuboid3d >::std_vector

(

)

const [inherited]

Give the vector of delta-points.

void mln::internal::classical_window_base< dpoint3d , cuboid3d >::sym

(

)

[inherited]

Apply a central symmetry to the target window; a no-op here.

const std::vector<dpoint3d >& mln::internal::classical_window_base< dpoint3d , cuboid3d >::vect

(

)

const [inherited]

Give the vector of delta-points.

unsigned mln::win::cuboid3d::volume

(

)

const [inline]

Return the volume of the cuboid.

References depth_, height_, and width_.

unsigned mln::win::cuboid3d::width

(

)

const [inline]

Return the width of the cuboid.

References width_.

---

Member Data Documentation

unsigned mln::win::cuboid3d::depth_ [protected]

The depth of the cuboid (expressed as a number of slices).

Referenced by delta_(), depth(), print_(), and volume().

unsigned mln::win::cuboid3d::height_ [protected]

The height of the cuboid (expressed as a number of rows).

Referenced by delta_(), height(), print_(), and volume().

unsigned mln::win::cuboid3d::width_ [protected]

The width of the cuboid (expressed as a number of columns).

Referenced by delta_(), print_(), volume(), and width().

mln::window<dpoint3d > mln::internal::classical_window_base< dpoint3d , cuboid3d >::win_ [protected, inherited]
