mln::dpoints_bkd_pixter< I > Class Template Reference

A generic backward iterator on the pixels of a dpoint-based window or neighborhood. More...

#include <dpoints_pixter.hh>

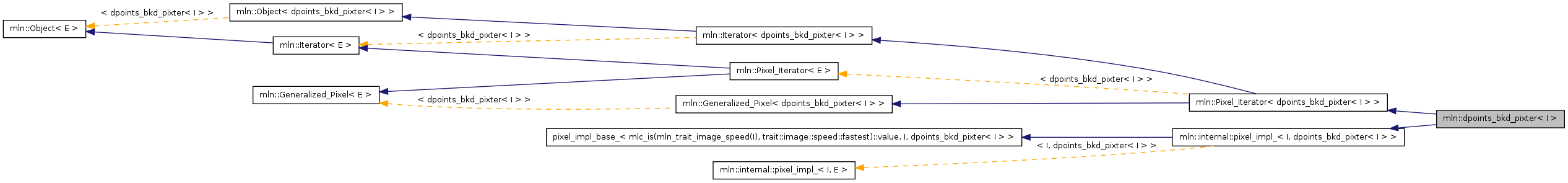

Inheritance diagram for mln::dpoints_bkd_pixter< I >:

List of all members.

Public Types
typedef Object< void >	category
typedef dpoints_bkd_pixter< I >	exact_t
typedef I	image
	Image type.
typedef I::lvalue	lvalue
	Image lvalue type.
typedef I::rvalue	rvalue
	Image rvalue type.
typedef I::value	value
	Image value type.
Public Member Functions
value **	address_ () const
	Address of the current iterator value/pixel.
const I::value &	center_val () const
	The value around which this iterator moves.
template<typename Dps , typename Pref >
	dpoints_bkd_pixter (const Generalized_Pixel< Pref > &pxl_ref, const Dps &dps)
	Constructor (using a generalized pixel).
template<typename Dps , typename Pref >
	dpoints_bkd_pixter (I &image, const Dps &dps, const Pref &p_ref)
	Constructor (using an image).
I &	ima () const
	Give the pixel image.
void	next ()
	Go to the next element.
	operator unsigned () const
rvalue	val () const
	Get the pixel iterator value.
lvalue	val ()
	pixel iterator value.
void	start ()
	Manipulation.
void	next_ ()
	Go to the next pixel.
void	invalidate ()
	Invalidate the iterator.
bool	is_valid () const
	Test the iterator validity.
void	update ()
	Force this iterator to update its location to take into account that its center point may have moved.
Private Types
typedef internal::pixel_impl_ < I, dpoints_bkd_pixter< I > >	super_
Private Member Functions
template<typename Dps >
void	init_ (const Dps &dps)
Private Attributes
std::vector< int > ::const_reverse_iterator	i_
	Current offset.
std::vector< int >	offset_
	Offset of each delta-point.
I::qlf_value **	value_ref_
	Reference value or pixel.
const I::psite *	p_ref_
	Reference pixel / point in the image.

---

Detailed Description

template<typename I>
class mln::dpoints_bkd_pixter< I >

A generic backward iterator on the pixels of a dpoint-based window or neighborhood.

Parameter I is the image type.

---

Member Typedef Documentation

typedef Object<void> mln::Object< dpoints_bkd_pixter< I > >::category [inherited]

typedef dpoints_bkd_pixter< I > mln::Object< dpoints_bkd_pixter< I > >::exact_t [inherited]

typedef I mln::internal::pixel_impl_< I, dpoints_bkd_pixter< I > >::image [inherited]

Image type.

typedef I ::lvalue mln::internal::pixel_impl_< I, dpoints_bkd_pixter< I > >::lvalue [inherited]

Image lvalue type.

typedef I ::rvalue mln::internal::pixel_impl_< I, dpoints_bkd_pixter< I > >::rvalue [inherited]

Image rvalue type.

template<typename I >

typedef internal::pixel_impl_< I, dpoints_bkd_pixter<I> > mln::dpoints_bkd_pixter< I >::super_ [private]

Reimplemented from mln::internal::pixel_impl_< I, dpoints_bkd_pixter< I > >.

typedef I ::value mln::internal::pixel_impl_< I, dpoints_bkd_pixter< I > >::value [inherited]

Image value type.

---

Constructor & Destructor Documentation

template<typename I >

template<typename Dps , typename Pref >

mln::dpoints_bkd_pixter< I >::dpoints_bkd_pixter	(	I &	image,
		const Dps &	dps,
		const Pref &	p_ref
	)			[inline]

Constructor (using an image).

Parameters:

[in]	image	The image to iterate over.
[in]	dps	An object (neighborhood or window) that can provide a set of delta-points.
[in]	p_ref	Center (resp. reference) point of the neighborhood (resp. window).

References mln::dpoints_bkd_pixter< I >::init_(), mln::dpoints_bkd_pixter< I >::p_ref_, and mln::dpoints_bkd_pixter< I >::value_ref_.

template<typename I >

template<typename Dps , typename Pref >

mln::dpoints_bkd_pixter< I >::dpoints_bkd_pixter	(	const Generalized_Pixel< Pref > &	pxl_ref,
		const Dps &	dps
	)			[inline]

Constructor (using a generalized pixel).

Parameters:

[in]	pxl_ref	Center (generalized) pixel to iterate around.
[in]	dps	An object (neighborhood or window) that can provide a set of delta-points.

References mln::dpoints_bkd_pixter< I >::init_(), mln::dpoints_bkd_pixter< I >::p_ref_, and mln::dpoints_bkd_pixter< I >::value_ref_.

---

Member Function Documentation

value** mln::internal::pixel_impl_< I, dpoints_bkd_pixter< I > >::address_

(

)

const [inherited]

Address of the current iterator value/pixel.

template<typename I >

const I::value & mln::dpoints_bkd_pixter< I >::center_val

(

)

const [inline]

The value around which this iterator moves.

References mln::dpoints_bkd_pixter< I >::p_ref_, and mln::dpoints_bkd_pixter< I >::value_ref_.

I& mln::internal::pixel_impl_< I, dpoints_bkd_pixter< I > >::ima

(

)

const [inherited]

Give the pixel image.

template<typename I >

template<typename Dps >

void mln::dpoints_bkd_pixter< I >::init_

(

const Dps &

dps

)

[inline, private]

References mln::dpoints_bkd_pixter< I >::invalidate(), and mln::dpoints_bkd_pixter< I >::offset_.

Referenced by mln::dpoints_bkd_pixter< I >::dpoints_bkd_pixter().

template<typename I >

void mln::dpoints_bkd_pixter< I >::invalidate

(

)

[inline]

Invalidate the iterator.

References mln::dpoints_bkd_pixter< I >::i_, and mln::dpoints_bkd_pixter< I >::offset_.

Referenced by mln::dpoints_bkd_pixter< I >::init_().

template<typename I >

bool mln::dpoints_bkd_pixter< I >::is_valid

(

)

const [inline]

Test the iterator validity.

References mln::dpoints_bkd_pixter< I >::i_, and mln::dpoints_bkd_pixter< I >::offset_.

Referenced by mln::dpoints_bkd_pixter< I >::next_(), and mln::dpoints_bkd_pixter< I >::update().

void mln::Iterator< dpoints_bkd_pixter< I > >::next

(

)

[inherited]

Go to the next element.

Warning:

This is a final method; iterator classes should not re-defined this method. The actual "next" operation has to be defined through the next_ method.

Precondition:

The iterator is valid.

template<typename I >

void mln::dpoints_bkd_pixter< I >::next_

(

)

[inline]

Go to the next pixel.

References mln::dpoints_bkd_pixter< I >::i_, and mln::dpoints_bkd_pixter< I >::is_valid().

mln::Generalized_Pixel< dpoints_bkd_pixter< I > >::operator unsigned

(

)

const [inline, inherited]

template<typename I >

void mln::dpoints_bkd_pixter< I >::start

(

)

[inline]

Manipulation.

Start an iteration.

References mln::dpoints_bkd_pixter< I >::i_, mln::dpoints_bkd_pixter< I >::offset_, and mln::dpoints_bkd_pixter< I >::update().

template<typename I >

void mln::dpoints_bkd_pixter< I >::update

(

)

[inline]

Force this iterator to update its location to take into account that its center point may have moved.

References mln::dpoints_bkd_pixter< I >::i_, mln::dpoints_bkd_pixter< I >::is_valid(), mln::dpoints_bkd_pixter< I >::p_ref_, and mln::dpoints_bkd_pixter< I >::value_ref_.

Referenced by mln::dpoints_bkd_pixter< I >::start().

rvalue mln::internal::pixel_impl_< I, dpoints_bkd_pixter< I > >::val

(

)

const [inherited]

Get the pixel iterator value.

lvalue mln::internal::pixel_impl_< I, dpoints_bkd_pixter< I > >::val

(

)

[inherited]

pixel iterator value.

---

Member Data Documentation

template<typename I >

std::vector<int>::const_reverse_iterator mln::dpoints_bkd_pixter< I >::i_ [private]

Current offset.

Referenced by mln::dpoints_bkd_pixter< I >::invalidate(), mln::dpoints_bkd_pixter< I >::is_valid(), mln::dpoints_bkd_pixter< I >::next_(), mln::dpoints_bkd_pixter< I >::start(), and mln::dpoints_bkd_pixter< I >::update().

template<typename I >

std::vector<int> mln::dpoints_bkd_pixter< I >::offset_ [private]

Offset of each delta-point.

offset_[dps.size() - 1] is absolute, while other offsets are relative (i.e., offset_[i] is the memory difference to go from pixel i+1 to pixel i.

Referenced by mln::dpoints_bkd_pixter< I >::init_(), mln::dpoints_bkd_pixter< I >::invalidate(), mln::dpoints_bkd_pixter< I >::is_valid(), and mln::dpoints_bkd_pixter< I >::start().

template<typename I >

const I ::psite* mln::dpoints_bkd_pixter< I >::p_ref_ [private]

Reference pixel / point in the image.

Referenced by mln::dpoints_bkd_pixter< I >::center_val(), mln::dpoints_bkd_pixter< I >::dpoints_bkd_pixter(), and mln::dpoints_bkd_pixter< I >::update().

template<typename I >

I ::qlf_value** mln::dpoints_bkd_pixter< I >::value_ref_ [private]

Reference value or pixel.

One and only one of these pointers should be non-null.

Reference value the image

Referenced by mln::dpoints_bkd_pixter< I >::center_val(), mln::dpoints_bkd_pixter< I >::dpoints_bkd_pixter(), and mln::dpoints_bkd_pixter< I >::update().
