mln::canvas::browsing::directional_t Struct Reference
Browsing in a certain direction. More...
#include <directional.hh>

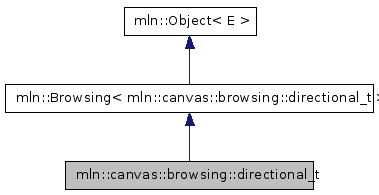

Inheritance diagram for mln::canvas::browsing::directional_t:
Public Types | |
| typedef Browsing< void > | category |
| typedef E | exact_t |
Public Member Functions | |
| void | final () |
| void | init () |
| template<typename F> | |
| void | operator() (F &f) const |
Detailed Description
Browsing in a certain direction.This canvas browse all the point of an image 'input' of type 'I' and of dimension 'dim' in the direction 'dir'.
The functor should provide (In addition to 'input', 'I', 'dim' and 'dir') three methods :
- init() : Will be called at the beginning.
- next() : Will be called at each point 'p' (also provided by the fonctor).
- final(): Will be called at the end.
F shall features :
{
--- as types:
I;
--- as attributes:
dim;
dir; // and test dir < dim
input;
p;
--- as methods:
void init();
void next();
void final();
}
Example :
1 0 0 2 0 0 3 0 0
4 0 0 5 0 0 6 0 0
7 0 0 8 0 0 9 0 0
Definition at line 89 of file directional.hh.
Member Typedef Documentation
template<typename E>
typedef Browsing<void> mln::Browsing< E >::category [inherited] |
template<typename E>
typedef E mln::Object< E >::exact_t [inherited] |
Member Function Documentation
template<typename E>
| void mln::Browsing< E >::final | ( | ) | [inline, inherited] |
Definition at line 84 of file browsing.hh.
template<typename E>
| void mln::Browsing< E >::init | ( | ) | [inline, inherited] |
Definition at line 78 of file browsing.hh.
template<typename F>
| void mln::canvas::browsing::directional_t::operator() | ( | F & | f | ) | const [inline] |
Definition at line 104 of file directional.hh.
References mln::trace::entering(), and mln::trace::exiting().
