mln::win::cuboid3d Struct Reference
[3D windows]

Cuboid defined on the 3-D square grid. More...

#include <cuboid3d.hh>

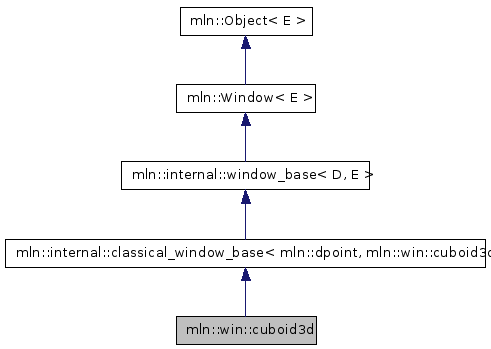

Inheritance diagram for mln::win::cuboid3d:

List of all members.

Public Types

typedef dpsites_fwd_piter< E > bkd_qiter

Backward site iterator associated type.

typedef Window< void > category

typedef psite center_t

Type of the window center.

typedef D dpsite

DPsite associated type.

typedef E exact_t

typedef dpsites_fwd_piter< E > fwd_qiter

Forward site iterator associated type.

typedef D::psite psite

Psite associated type.

typedef fwd_qiter qiter

Site iterator associated type.

typedef window< D > regular

Regular window associated type.

typedef D::site site

Site associated type.

Public Member Functions

cuboid3d (unsigned depth, unsigned height, unsigned width)

Constructor.

unsigned delta () const

Give the maximum coordinate gap between the window center and a window point.

unsigned delta_ () const

Give the maximum coordinate gap between the center of the window and a point of the window.

const D & dp (unsigned i) const

Give the i-th delta-point.

bool has (const D &dp) const

Test if the delta-point dp belongs to the window.

bool is_centered () const

Test if the window is centered; return true.

bool is_empty () const

Test if the window is empty (null size; no delta-point).

bool is_neighbable_ () const

Test if this window can be a neighborhood.

bool is_symmetric () const

Test if the window is symmetric; return true.

bool is_valid () const

return true by default.

void print (std::ostream &ostr) const

Print into ostr the window definition.

void print_ (std::ostream &ostr) const

unsigned size () const

Give the number of delta-points.

const std::vector< D > & std_vector () const

Give the vector of delta-points.

void sym ()

Apply a central symmetry to the target window; a no-op here.

const std::vector< D > & vect () const

Give the vector of delta-points.

unsigned volume () const

Return the volume of the cuboid.

unsigned depth () const

Accessors.

unsigned height () const

Return the height of the cuboid.

unsigned width () const

Return the width of the cuboid.

Protected Member Functions

void insert (const D &d)

Protected Attributes

unsigned depth_

The depth of the cuboid (expressed as a number of slices).

unsigned height_

The height of the cuboid (expressed as a number of rows).

unsigned width_

The width of the cuboid (expressed as a number of columns).

mln::window< D > win_

Detailed Description

Cuboid defined on the 3-D square grid.

A cuboid3d is a 3-D window with cuboid (also known as rectangular prism or rectangular parallelepiped) shape. It is centered and symmetric.

For instance:

            o o o o o o o
           o o o o o o o
          o o o o o o o
         o o o o o o o
        o o o o o o o

            o o o o o o o
           o o o o o o o
          o o o x o o o
         o o o o o o o
        o o o o o o o

            o o o o o o o
           o o o o o o o
          o o o o o o o
         o o o o o o o
        o o o o o o o

is defined with depth = 3, height = 5 and width = 7.

Reference: http://en.wikipedia.org/wiki/Cuboid

Definition at line 80 of file cuboid3d.hh.

Member Typedef Documentation

template<typename D, typename E>

typedef dpsites_fwd_piter<E> mln::internal::classical_window_base< D, E >::bkd_qiter [inherited]

Backward site iterator associated type.

Definition at line 67 of file classical_window_base.hh.

template<typename E>

typedef Window<void> mln::Window< E >::category [inherited]

Reimplemented from mln::Object< E >.

Definition at line 89 of file concept/window.hh.

template<typename D, typename E>

typedef psite mln::internal::window_base< D, E >::center_t [inherited]

Type of the window center.

Definition at line 62 of file window_base.hh.

template<typename D, typename E>

typedef D mln::internal::window_base< D, E >::dpsite [inherited]

DPsite associated type.

Reimplemented in mln::win::multiple< W, F >, and mln::win::multiple_size< n, W, F >.

Definition at line 53 of file window_base.hh.

template<typename E>

typedef E mln::Object< E >::exact_t [inherited]

Definition at line 172 of file object.hh.

template<typename D, typename E>

typedef dpsites_fwd_piter<E> mln::internal::classical_window_base< D, E >::fwd_qiter [inherited]

Forward site iterator associated type.

Definition at line 64 of file classical_window_base.hh.

template<typename D, typename E>

typedef D ::psite mln::internal::window_base< D, E >::psite [inherited]

Psite associated type.

Reimplemented in mln::win::multiple< W, F >, and mln::win::multiple_size< n, W, F >.

Definition at line 56 of file window_base.hh.

template<typename D, typename E>

typedef fwd_qiter mln::internal::classical_window_base< D, E >::qiter [inherited]

Site iterator associated type.

Definition at line 70 of file classical_window_base.hh.

template<typename D, typename E>

typedef window<D> mln::internal::classical_window_base< D, E >::regular [inherited]

Regular window associated type.

Definition at line 60 of file classical_window_base.hh.

template<typename D, typename E>

typedef D ::site mln::internal::window_base< D, E >::site [inherited]

Site associated type.

Reimplemented in mln::win::multiple< W, F >, and mln::win::multiple_size< n, W, F >.

Definition at line 59 of file window_base.hh.

Constructor & Destructor Documentation

mln::win::cuboid3d::cuboid3d	(	unsigned	depth,
		unsigned	height,
		unsigned	width
	)			`[inline]`

Constructor.

Parameters:

`[in]`	depth	The depth of the cuboid3d.
`[in]`	height	The height of the cuboid3d.
`[in]`	width	The width of the cuboid3d.

Precondition:: Argument depth, height and width must be odd.

Definition at line 125 of file cuboid3d.hh.

References mln::internal::classical_window_base< D, E >::insert().

Member Function Documentation

template<typename D, typename E>

unsigned mln::internal::classical_window_base< D, E >::delta ( ) const [inline, inherited]

Give the maximum coordinate gap between the window center and a window point.

Definition at line 177 of file classical_window_base.hh.

References mln::exact().

unsigned mln::win::cuboid3d::delta_ ( ) const [inline]

Give the maximum coordinate gap between the center of the window and a point of the window.

Reimplemented from mln::internal::classical_window_base< D, E >.

Definition at line 174 of file cuboid3d.hh.

References depth_, height_, and width_.

unsigned mln::win::cuboid3d::depth ( ) const [inline]

Accessors.

Return the depth of the cuboid.

Definition at line 146 of file cuboid3d.hh.

References depth_.

template<typename D, typename E>

const D & mln::internal::classical_window_base< D, E >::dp ( unsigned i ) const [inline, inherited]

Give the i-th delta-point.

Definition at line 196 of file classical_window_base.hh.

References mln::internal::classical_window_base< D, E >::size(), and mln::internal::classical_window_base< D, E >::win_.

template<typename D, typename E>

bool mln::internal::classical_window_base< D, E >::has ( const D & dp ) const [inline, inherited]

Test if the delta-point dp belongs to the window.

Definition at line 221 of file classical_window_base.hh.

References mln::internal::classical_window_base< D, E >::win_.

unsigned mln::win::cuboid3d::height ( ) const [inline]

Return the height of the cuboid.

Definition at line 153 of file cuboid3d.hh.

References height_.

template<typename D, typename E>

void mln::internal::classical_window_base< D, E >::insert ( const D & d ) [inline, protected, inherited]

Definition at line 229 of file classical_window_base.hh.

References mln::internal::classical_window_base< D, E >::win_.

Referenced by mln::win::backdiag2d::backdiag2d(), mln::win::ball< G, C >::ball(), mln::win::cube3d::cube3d(), cuboid3d(), mln::win::diag2d::diag2d(), mln::win::line< M, i, C >::line(), mln::win::octagon2d::octagon2d(), and mln::win::rectangle2d::rectangle2d().

template<typename D, typename E>

bool mln::internal::classical_window_base< D, E >::is_centered ( ) const [inline, inherited]

Test if the window is centered; return true.

Definition at line 150 of file classical_window_base.hh.

References mln::internal::classical_window_base< D, E >::win_.

template<typename D, typename E>

bool mln::internal::classical_window_base< D, E >::is_empty ( ) const [inline, inherited]

Test if the window is empty (null size; no delta-point).

Definition at line 142 of file classical_window_base.hh.

References mln::internal::classical_window_base< D, E >::win_.

template<typename D, typename E>

bool mln::internal::window_base< D, E >::is_neighbable_ ( ) const [inline, inherited]

Test if this window can be a neighborhood.

Definition at line 95 of file window_base.hh.

References mln::exact().

Referenced by mln::convert::over_load::from_to_().

template<typename D, typename E>

bool mln::internal::classical_window_base< D, E >::is_symmetric ( ) const [inline, inherited]

Test if the window is symmetric; return true.

Definition at line 159 of file classical_window_base.hh.

References mln::internal::classical_window_base< D, E >::win_.

template<typename D, typename E>

bool mln::internal::window_base< D, E >::is_valid ( ) const [inline, inherited]

return true by default.

Definition at line 87 of file window_base.hh.

Referenced by mln::morpho::approx::impl::dilation_by_distance_thresholding_2d(), mln::morpho::approx::impl::dilation_by_distance_thresholding_3d(), mln::morpho::approx::impl::erosion_by_distance_thresholding_2d(), and mln::morpho::approx::impl::erosion_by_distance_thresholding_3d().

template<typename D, typename E>

void mln::internal::classical_window_base< D, E >::print ( std::ostream & ostr ) const [inline, inherited]

Print into ostr the window definition.

Definition at line 237 of file classical_window_base.hh.

References mln::exact().

void mln::win::cuboid3d::print_ ( std::ostream & ostr ) const [inline]

Reimplemented from mln::internal::classical_window_base< D, E >.

Definition at line 194 of file cuboid3d.hh.

References depth_, height_, and width_.

template<typename D, typename E>

unsigned mln::internal::classical_window_base< D, E >::size ( ) const [inline, inherited]

Give the number of delta-points.

Reimplemented in mln::win::line< M, i, C >.

Definition at line 134 of file classical_window_base.hh.

References mln::internal::classical_window_base< D, E >::win_.

Referenced by mln::internal::classical_window_base< D, E >::dp().

template<typename D, typename E>

const std::vector< D > & mln::internal::classical_window_base< D, E >::std_vector ( ) const [inline, inherited]

Give the vector of delta-points.

Reimplemented in mln::win::rectangle2d.

Definition at line 205 of file classical_window_base.hh.

References mln::internal::classical_window_base< D, E >::win_.

Referenced by mln::internal::classical_window_base< D, E >::vect().

template<typename D, typename E>

void mln::internal::classical_window_base< D, E >::sym ( ) [inline, inherited]

Apply a central symmetry to the target window; a no-op here.

Definition at line 168 of file classical_window_base.hh.

References mln::internal::classical_window_base< D, E >::win_.

template<typename D, typename E>

const std::vector< D > & mln::internal::classical_window_base< D, E >::vect ( ) const [inline, inherited]

Give the vector of delta-points.

Definition at line 213 of file classical_window_base.hh.

References mln::internal::classical_window_base< D, E >::std_vector().

unsigned mln::win::cuboid3d::volume ( ) const [inline]

Return the volume of the cuboid.

Definition at line 167 of file cuboid3d.hh.

References depth_, height_, and width_.

unsigned mln::win::cuboid3d::width ( ) const [inline]

Return the width of the cuboid.

Definition at line 160 of file cuboid3d.hh.

References width_.

Member Data Documentation

unsigned mln::win::cuboid3d::depth_ [protected]

The depth of the cuboid (expressed as a number of slices).

Definition at line 113 of file cuboid3d.hh.

Referenced by delta_(), depth(), print_(), and volume().

unsigned mln::win::cuboid3d::height_ [protected]

The height of the cuboid (expressed as a number of rows).

Definition at line 115 of file cuboid3d.hh.

Referenced by delta_(), height(), print_(), and volume().

unsigned mln::win::cuboid3d::width_ [protected]

The width of the cuboid (expressed as a number of columns).

Definition at line 117 of file cuboid3d.hh.

Referenced by delta_(), print_(), volume(), and width().

template<typename D, typename E>

mln::window<D> mln::internal::classical_window_base< D, E >::win_ [protected, inherited]

Definition at line 118 of file classical_window_base.hh.


Public Types
typedef dpsites_fwd_piter< E >	bkd_qiter
	Backward site iterator associated type.
typedef Window< void >	category
typedef psite	center_t
	Type of the window center.
typedef D	dpsite
	DPsite associated type.
typedef E	exact_t
typedef dpsites_fwd_piter< E >	fwd_qiter
	Forward site iterator associated type.
typedef D::psite	psite
	Psite associated type.
typedef fwd_qiter	qiter
	Site iterator associated type.
typedef window< D >	regular
	Regular window associated type.
typedef D::site	site
	Site associated type.
Public Member Functions
	cuboid3d (unsigned depth, unsigned height, unsigned width)
	Constructor.
unsigned	delta () const
	Give the maximum coordinate gap between the window center and a window point.
unsigned	delta_ () const
	Give the maximum coordinate gap between the center of the window and a point of the window.
const D &	dp (unsigned i) const
	Give the `i-th` delta-point.
bool	has (const D &dp) const
	Test if the delta-point `dp` belongs to the window.
bool	is_centered () const
	Test if the window is centered; return true.
bool	is_empty () const
	Test if the window is empty (null size; no delta-point).
bool	is_neighbable_ () const
	Test if this window can be a neighborhood.
bool	is_symmetric () const
	Test if the window is symmetric; return true.
bool	is_valid () const
	return true by default.
void	print (std::ostream &ostr) const
	Print into `ostr` the window definition.
void	print_ (std::ostream &ostr) const
unsigned	size () const
	Give the number of delta-points.
const std::vector< D > &	std_vector () const
	Give the vector of delta-points.
void	sym ()
	Apply a central symmetry to the target window; a no-op here.
const std::vector< D > &	vect () const
	Give the vector of delta-points.
unsigned	volume () const
	Return the volume of the cuboid.

unsigned	depth () const
	Accessors.
unsigned	height () const
	Return the height of the cuboid.
unsigned	width () const
	Return the width of the cuboid.
Protected Member Functions
void	insert (const D &d)
Protected Attributes
unsigned	depth_
	The depth of the cuboid (expressed as a number of slices).
unsigned	height_
	The height of the cuboid (expressed as a number of rows).
unsigned	width_
	The width of the cuboid (expressed as a number of columns).
mln::window< D >	win_

mln::win::cuboid3d Struct Reference [3D windows]

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

mln::win::cuboid3d Struct Reference
[3D windows]
