mln::fun::x2x::internal::helper_composed_< T2, T1, E, true > Struct Template Reference

Helper for describing a bijective composition. More...

#include <composed.hh>

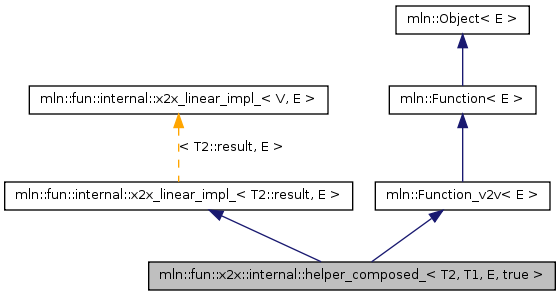

Inheritance diagram for mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >:

List of all members.

Public Types
typedef T2::result	argument
typedef Function_v2v< void >	category
typedef T2::result::coord	coord
typedef E	exact_t
typedef composed< mln_invert(T1), mln_invert(T2)>	invert
	Type of the inverse function.
typedef algebra::h_mat< dim, coord >	matrix
typedef void	mutable_result
typedef T2::result	result
typedef fun::internal::x2x_linear_impl_ < typename T2::result, E >	super_
Public Member Functions
const T1 &	first () const
	Set the new first transformation.
	helper_composed_ ()
	Constructor without argument.
	helper_composed_ (const T2 &f, const T1 &g)
	Constructor with the two transformation to be composed.
invert	inv () const
	Return the inverse function.
const matrix &	mat () const
T2::result	operator() (const T2::result &x) const
const T2 &	second () const
	Set the new second transformation.
void	set_first (const T1 &g)
	Set the new first transformation.
void	set_second (const T2 &f)
	Set the new second transformation.
Public Attributes
T2	f_
T1	g_
Static Public Attributes
static const unsigned	dim
Protected Attributes
matrix	m_

---

Detailed Description

template<typename T2, typename T1, typename E>
struct mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >

Helper for describing a bijective composition.

---

Member Typedef Documentation

typedef T2::result mln::fun::internal::x2x_linear_impl_< T2::result , E >::argument [inherited]

template<typename E>

typedef Function_v2v<void> mln::Function_v2v< E >::category [inherited]

Reimplemented from mln::Function< E >.

Reimplemented in mln::Function_v2b< E >, mln::Function_v2b< f_box2d_t >, mln::Function_v2b< chess >, mln::Function_v2b< is_dot >, mln::Function_v2b< has< I > >, mln::Function_v2b< is_edge >, mln::Function_v2b< is_row_odd >, mln::Function_v2b< big_chess< B > >, mln::Function_v2b< keep_specific_colors >, mln::Function_v2b< i2v::array< T > >, mln::Function_v2b< my_box2d >, mln::Function_v2b< is_pixel >, mln::Function_v2b< is_n_face< N > >, mln::Function_v2b< is_separator >, mln::Function_v2b< is_simple_cell< I > >, mln::Function_v2b< tautology >, mln::Function_v2b< not_to_remove >, mln::Function_v2b< f_box1d_t >, mln::Function_v2b< threshold< V > >, mln::Function_v2b< lnot< V > >, mln::Function_v2b< f_box3d_t >, and mln::Function_v2b< antilogy >.

typedef T2::result ::coord mln::fun::internal::x2x_linear_impl_< T2::result , E >::coord [inherited]

template<typename E>

typedef E mln::Object< E >::exact_t [inherited]

template<typename T2 , typename T1 , typename E >

typedef composed<mln_invert(T1),mln_invert(T2)> mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::invert

Type of the inverse function.

typedef algebra::h_mat<dim, coord> mln::fun::internal::x2x_linear_impl_< T2::result , E >::matrix [inherited]

template<typename E>

typedef void mln::Function_v2v< E >::mutable_result [inherited]

Reimplemented in mln::fun::i2v::array< T >, mln::util::array< T >, mln::fun::i2v::array< V >, mln::fun::i2v::array< bool >, mln::util::array< S >, mln::util::array< W >, mln::util::array< unsigned >, mln::util::array< bool >, and mln::util::array< box< typename I::psite > >.

typedef T2::result mln::fun::internal::x2x_linear_impl_< T2::result , E >::result [inherited]

template<typename T2 , typename T1 , typename E >

typedef fun::internal::x2x_linear_impl_<typename T2::result, E > mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::super_

---

Constructor & Destructor Documentation

template<typename T2 , typename T1 , typename E >

mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::helper_composed_

(

)

[inline]

Constructor without argument.

template<typename T2 , typename T1 , typename E >

mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::helper_composed_	(	const T2 &	f,
		const T1 &	g
	)			[inline]

Constructor with the two transformation to be composed.

---

Member Function Documentation

template<typename T2 , typename T1 , typename E >

const T1 & mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::first

(

)

const [inline]

Set the new first transformation.

template<typename T2 , typename T1 , typename E >

helper_composed_< T2, T1, E, true >::invert mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::inv

(

)

const [inline]

Return the inverse function.

References mln::compose().

const matrix& mln::fun::internal::x2x_linear_impl_< T2::result , E >::mat

(

)

const [inherited]

T2::result mln::fun::internal::x2x_linear_impl_< T2::result , E >::operator()

(

const T2::result &

x

)

const [inline, inherited]

References mln::fun::internal::x2x_linear_impl_< V, E >::m_, and mln::algebra::h_vec< d, C >::to_vec().

template<typename T2 , typename T1 , typename E >

const T2 & mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::second

(

)

const [inline]

Set the new second transformation.

template<typename T2 , typename T1 , typename E >

void mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::set_first

(

const T1 &

g

)

[inline]

Set the new first transformation.

template<typename T2 , typename T1 , typename E >

void mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::set_second

(

const T2 &

f

)

[inline]

Set the new second transformation.

---

Member Data Documentation

const unsigned mln::fun::internal::x2x_linear_impl_< T2::result , E >::dim [static, inherited]

template<typename T2 , typename T1 , typename E >

T2 mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::f_

template<typename T2 , typename T1 , typename E >

T1 mln::fun::x2x::internal::helper_composed_< T2, T1, E, true >::g_

matrix mln::fun::internal::x2x_linear_impl_< T2::result , E >::m_ [protected, inherited]
